IPD170N04NGBTMA1

IR (Infineon Technologies)
In Stock: 102

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:OptiMOS™
  • Package:Tape & Reel (TR)
  • Part Status:Obsolete
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):40 V
  • Current - Continuous Drain (Id) @ 25°C:30A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:17mOhm @ 30A, 10V
  • Vgs(th) (Max) @ Id:4V @ 10µA



  • Gate Charge (Qg) (Max) @ Vgs:11 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:880 pF @ 20 V
  • FET Feature:-
  • Power Dissipation (Max):31W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:PG-TO252-3
  • Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63

Related Products


IPD25CNE8N G

MOSFET N-CH 85V 35A TO252-3

IPD25CNE8N G Datasheet

Call for price


IPD33CN10NGBUMA1

MOSFET N-CH 100V 27A TO252-3

IPD33CN10NGBUMA1 Datasheet

Call for price


IPD49CN10N G

MOSFET N-CH 100V 20A TO252-3

IPD49CN10N G Datasheet

Call for price


IPD50N06S2L13ATMA1

MOSFET N-CH 55V 50A TO252-3

IPD50N06S2L13ATMA1 Datasheet

Call for price


IPD50R399CP

MOSFET N-CH 550V 9A TO252-3

IPD50R399CP Datasheet

Call for price


IPD50R520CP

MOSFET N-CH 550V 7.1A TO252-3

IPD50R520CP Datasheet

Call for price


IPD64CN10N G

MOSFET N-CH 100V 17A TO252-3

IPD64CN10N G Datasheet

Call for price


IPI024N06N3GHKSA1

MOSFET N-CH 60V 120A TO262-3

IPI024N06N3GHKSA1 Datasheet

Call for price


IPI028N08N3GHKSA1

MOSFET N-CH 80V 100A TO262-3

IPI028N08N3GHKSA1 Datasheet

Call for price

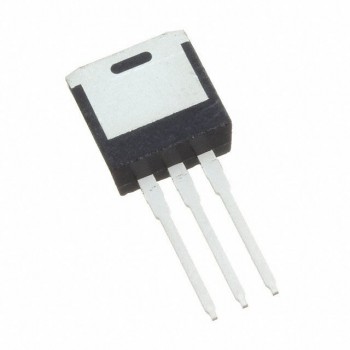

IPI030N10N3GHKSA1
