IXTH6N80A

Technical Details

• Series:-
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):800 V
• Current - Continuous Drain (Id) @ 25°C:6A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:1.4Ohm @ 3A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:130 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2800 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):180W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole

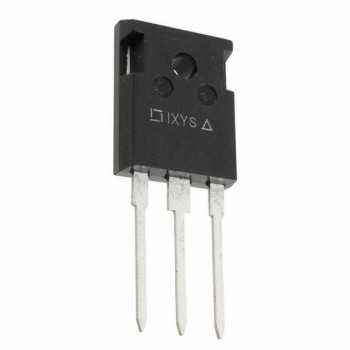

• Supplier Device Package:TO-247 (IXTH)
• Package / Case:TO-247-3
