FDZ663P
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET P-CH 20V 2.7A 4WLCSP
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet FDZ663P Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PowerTrench®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- FET Type:P-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):20 V
- Current - Continuous Drain (Id) @ 25°C:2.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
- Rds On (Max) @ Id, Vgs:134mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id:1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:8.2 nC @ 4.5 V
- Vgs (Max):±8V
- Input Capacitance (Ciss) (Max) @ Vds:525 pF @ 10 V
- FET Feature:-
- Power Dissipation (Max):1.3W (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

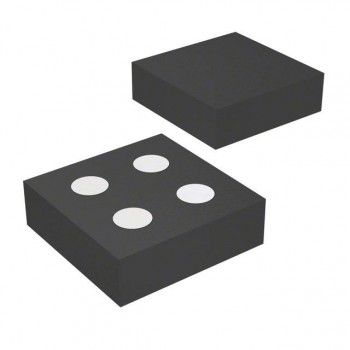

- Supplier Device Package:4-WLCSP (0.8x0.8)
- Package / Case:4-XFBGA, WLCSP
