PMR290UNE,115

NXP Semiconductors
In Stock: 165

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):20 V
  • Current - Continuous Drain (Id) @ 25°C:700mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
  • Rds On (Max) @ Id, Vgs:380mOhm @ 500mA, 4.5V
  • Vgs(th) (Max) @ Id:950mV @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:0.68 nC @ 4.5 V
  • Vgs (Max):±8V
  • Input Capacitance (Ciss) (Max) @ Vds:83 pF @ 10 V
  • FET Feature:-
  • Power Dissipation (Max):250mW (Ta), 770mW (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:SC-75
  • Package / Case:SC-75, SOT-416

Related Products


SK8603190L

MOSFET N-CH 30V 12A/19A 8HSO

SK8603190L Datasheet

Call for price

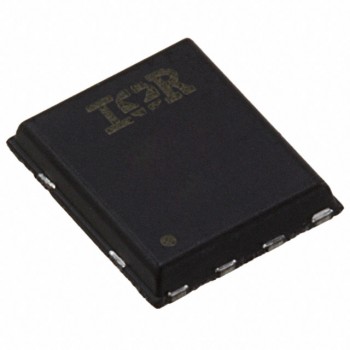

IRFH4201TRPBF

MOSFET N-CH 25V 49A 8PQFN

IRFH4201TRPBF Datasheet

Call for price


IRFH4210TRPBF

MOSFET N-CH 25V 45A PQFN

IRFH4210TRPBF Datasheet

Call for price


IRFH4213DTRPBF

MOSFET N-CH 25V 40A PQFN

IRFH4213DTRPBF Datasheet

Call for price


IRFH4213TRPBF

MOSFET N-CH 25V 41A PQFN

IRFH4213TRPBF Datasheet

Call for price

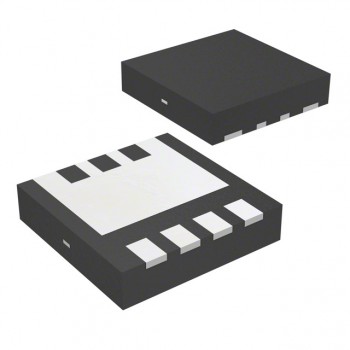

IRFHM4226TRPBF

MOSFET N CH 25V 28A PQFN

IRFHM4226TRPBF Datasheet

Call for price


IPD60R600P6

MOSFET N-CH 600V 7.3A TO252-3

IPD60R600P6 Datasheet

Call for price


DMP3120L-7

MOSFET P-CH 30V 2.8A SOT-23

DMP3120L-7 Datasheet

Call for price

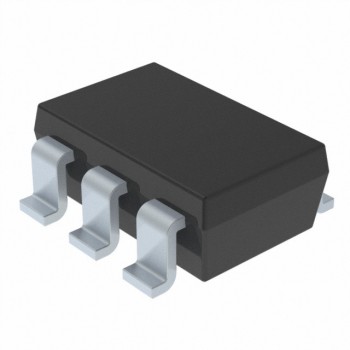

ZXM62P03E6TC
