AOB12N60FDL
Alpha and Omega Semiconductor, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 600V 12A TO263
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet AOB12N60FDL Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):600 V
- Current - Continuous Drain (Id) @ 25°C:12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:650mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id:4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:50 nC @ 10 V
- Vgs (Max):±30V
- Input Capacitance (Ciss) (Max) @ Vds:2010 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):278W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

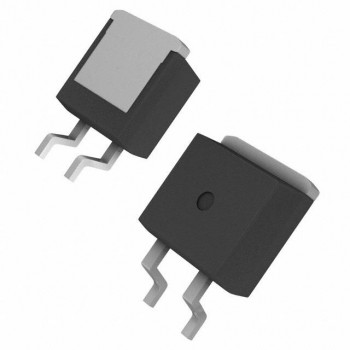

- Supplier Device Package:TO-263 (D²Pak)
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
