AON7400B_101
Alpha and Omega Semiconductor, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 30V 18A/40A 8DFN
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet AON7400B_101 Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:18A (Ta), 40A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:7.5mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id:2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:26 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:1440 pF @ 15 V
- FET Feature:-
- Power Dissipation (Max):4.1W (Ta), 24W (Tc)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:8-DFN-EP (3x3)
- Package / Case:8-PowerVDFN
Related Products
MOSFET N-CH 30V 13.5A/39A 8DFN
Call for price
MOSFET N-CH 30V 14A/40A 8DFN
Call for price
MOSFET N-CH
Call for price
MOSFET P-CH 30V 25A ATPAK
Call for price
MOSFET N-CH DPAK
Call for price
MOSFET P-CH TO220-3
Call for price

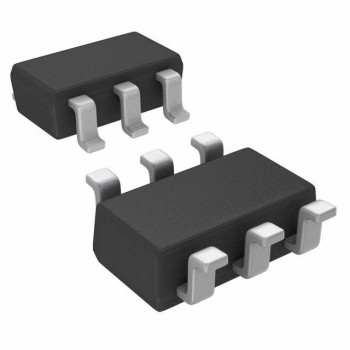

MOSFET P-CH 30V 5A CPH6
