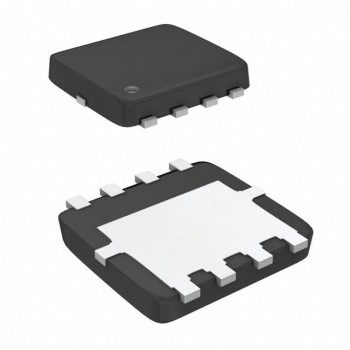

AON6403L

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:21A (Ta), 85A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:3.1mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:196 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:9120 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):2.3W (Ta), 83W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-DFN-EP (5x6)
• Package / Case:8-PowerVDFN
