CUS05S30,H3F
Toshiba Electronic Devices and Storage Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE SCHOTTKY 30V 500MA USC
- CategoryDiodes - Rectifiers - Single
- Datasheet CUS05S30,H3F Datasheet
-
ECAD Model
- Share
In Stock: 1,628
Can ship immediately
Pricing:
- 1$0.33
- 3,000$0.05455
- 6,000$0.04744
- 15,000$0.04032
- 30,000$0.03795
- 75,000$0.03558
- 150,000$0.03321
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Diode Type:Schottky
- Voltage - DC Reverse (Vr) (Max):30 V
- Current - Average Rectified (Io):500mA
- Voltage - Forward (Vf) (Max) @ If:340 mV @ 100 mA
- Speed:Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr):-
- Current - Reverse Leakage @ Vr:150 µA @ 10 V
- Capacitance @ Vr, F:55pF @ 0V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:SC-76, SOD-323
- Supplier Device Package:USC
- Operating Temperature - Junction:125°C (Max)
Related Products

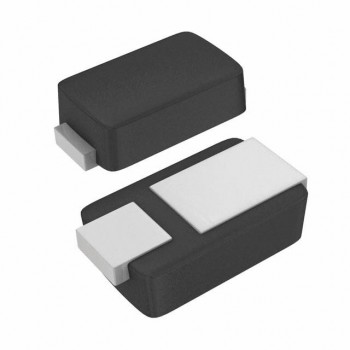

DIODE GEN PURP 400V 1A TS/SOD-12
