TSS54U RGG
TSC (Taiwan Semiconductor)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE SCHOTTKY 30V 200MA 0603
- CategoryDiodes - Rectifiers - Single
- Datasheet TSS54U RGG Datasheet
-
ECAD Model
- Share
In Stock: 2,873
Can ship immediately
Pricing:
- 1$0.41
- 4,000$0.06843
- 8,000$0.0595
- 12,000$0.05058
- 28,000$0.0476
- 100,000$0.04165
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Diode Type:Schottky
- Voltage - DC Reverse (Vr) (Max):30 V
- Current - Average Rectified (Io):200mA
- Voltage - Forward (Vf) (Max) @ If:1 V @ 100 mA
- Speed:Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr):5 ns
- Current - Reverse Leakage @ Vr:2 µA @ 30 V
- Capacitance @ Vr, F:10pF @ 1V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Operating Temperature - Junction:-65°C ~ 125°C
Related Products

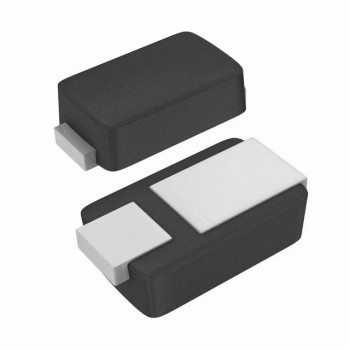

FRED PT RECTIFIER 1A SMP
