VS-18TQ045-M3
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE SCHOTTKY 18A 45V TO-220AC
- CategoryDiodes - Rectifiers - Single
-
ECAD Model
- Share
In Stock: 327
Can ship immediately
Pricing:
- 1$1.57
- 1,000$0.74961
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Diode Type:Schottky
- Voltage - DC Reverse (Vr) (Max):45 V
- Current - Average Rectified (Io):18A
- Voltage - Forward (Vf) (Max) @ If:720 mV @ 36 A
- Speed:Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr):-
- Current - Reverse Leakage @ Vr:2.5 mA @ 45 V
- Capacitance @ Vr, F:1400pF @ 5V, 1MHz
- Mounting Type:Through Hole
- Package / Case:TO-220-2
- Supplier Device Package:TO-220AC
- Operating Temperature - Junction:-55°C ~ 175°C
Related Products
RECTIFIER DIODE, 6A, 100V
- 1: $1.55000
DIODE SCHOTTKY 65V 2A TO-220 FUL
- 1: $1.63000
DIODE SCHOTTKY 45V 2A TO-220 FUL
- 1: $1.63000
DIODE FAST RECOVERY 200V 16A TO-
- 1: $1.69000
RECTIFIER DIODE
- 1: $1.64000

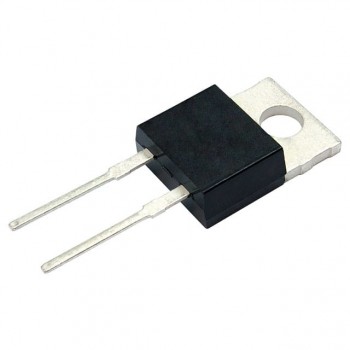

15A, 1200V, "H" SERIES FRED PT I
- 1: $1.74000

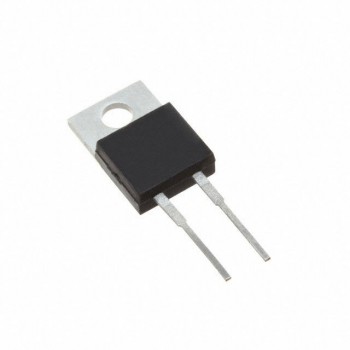

15A, 1200V, "X" SERIES FRED PT I
