BAV20WS-7-F
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE GEN PURP 150V 200MA SOD323
- CategoryDiodes - Rectifiers - Single
- Datasheet BAV20WS-7-F Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$0.29
- 3,000$0.05179
- 6,000$0.04557
- 15,000$0.03936
- 30,000$0.03729
- 75,000$0.03521
- 150,000$0.03314
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Diode Type:Standard
- Voltage - DC Reverse (Vr) (Max):150 V
- Current - Average Rectified (Io):200mA
- Voltage - Forward (Vf) (Max) @ If:1.25 V @ 200 mA
- Speed:Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr):50 ns
- Current - Reverse Leakage @ Vr:100 nA @ 150 V
- Capacitance @ Vr, F:5pF @ 0V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:SC-76, SOD-323
- Supplier Device Package:SOD-323
- Operating Temperature - Junction:-65°C ~ 150°C
Related Products
SMALLSIGNALSCHOTTKYDIODESOD-323
- 1: $0.29000
SCHOTTKY DIODE SOD523
- 1: $0.29000

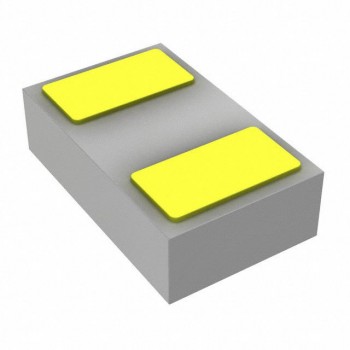

DIODE SCHTKY 40V 500MA CLP10062L
