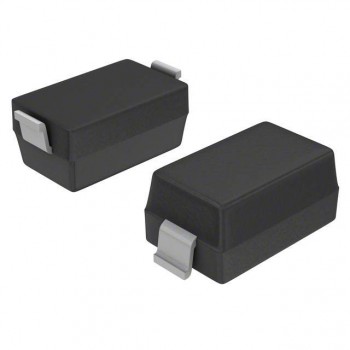

SD101CW-HE3-18
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE SCHOTTKY 400MW 40V SOD123
- CategoryDiodes - Rectifiers - Single
- Datasheet SD101CW-HE3-18 Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$0.05544
- 10,000$0.0504
Quote It
Technical Details
- Series:Automotive, AEC-Q101
- Package:Tape & Reel (TR)
- Part Status:Active
- Diode Type:Schottky
- Voltage - DC Reverse (Vr) (Max):40 V
- Current - Average Rectified (Io):30mA (DC)
- Voltage - Forward (Vf) (Max) @ If:900 mV @ 15 mA
- Speed:Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr):1 ns
- Current - Reverse Leakage @ Vr:200 nA @ 30 V
- Capacitance @ Vr, F:2.2pF @ 0V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:SOD-123
- Supplier Device Package:SOD-123
- Operating Temperature - Junction:-55°C ~ 125°C
