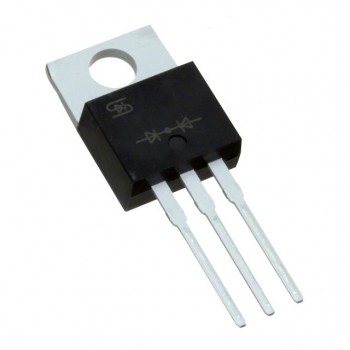

SF2006G C0G

Technical Details

• Series:-
• Package:Tube
• Part Status:Active
• Diode Type:Standard
• Voltage - DC Reverse (Vr) (Max):400 V
• Current - Average Rectified (Io):20A
• Voltage - Forward (Vf) (Max) @ If:1.3 V @ 10 A
• Speed:Fast Recovery =< 500ns, > 200mA (Io)

• Reverse Recovery Time (trr):35 ns
• Current - Reverse Leakage @ Vr:5 µA @ 400 V
• Capacitance @ Vr, F:80pF @ 4V, 1MHz
• Mounting Type:Through Hole
• Package / Case:TO-220-3
• Supplier Device Package:TO-220AB
• Operating Temperature - Junction:-55°C ~ 150°C
