NSF8KTHE3_A/P
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE GEN PURP 800V 8A ITO220AC
- CategoryDiodes - Rectifiers - Single
- Datasheet NSF8KTHE3_A/P Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$0.7014
- 1,000$0.7014
Quote It
Technical Details
- Series:Automotive, AEC-Q101
- Package:Tube
- Part Status:Active
- Diode Type:Standard
- Voltage - DC Reverse (Vr) (Max):800 V
- Current - Average Rectified (Io):8A
- Voltage - Forward (Vf) (Max) @ If:1.1 V @ 8 A
- Speed:Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr):-
- Current - Reverse Leakage @ Vr:10 µA @ 800 V
- Capacitance @ Vr, F:55pF @ 4V, 1MHz
- Mounting Type:Through Hole

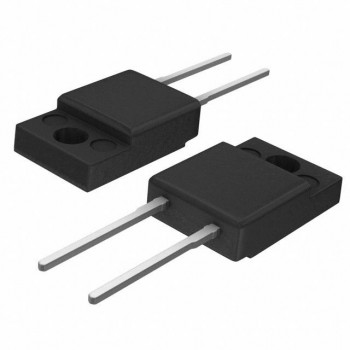

- Package / Case:TO-220-2 Insulated, TO-220AC
- Supplier Device Package:ITO-220AC
- Operating Temperature - Junction:-55°C ~ 150°C
