• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDIODE GEN PURP 1.2KV 20A TO220FP
  • CategoryDiodes - Rectifiers - Single
  • ECAD Model
  • Share
In Stock: 105

Can ship immediately

Pricing:
  • 1$2.14178
  • 50$1.84542
  • 100$1.60237
  • 500$1.3953
  • 1,000$1.26028

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Diode Type:Standard
  • Voltage - DC Reverse (Vr) (Max):1200 V
  • Current - Average Rectified (Io):20A
  • Voltage - Forward (Vf) (Max) @ If:1.31 V @ 20 A
  • Speed:Fast Recovery =< 500ns, > 200mA (Io)



  • Reverse Recovery Time (trr):400 ns
  • Current - Reverse Leakage @ Vr:100 µA @ 1200 V
  • Capacitance @ Vr, F:-
  • Mounting Type:Through Hole
  • Package / Case:TO-220-2 Full Pack
  • Supplier Device Package:TO-220-2 Full Pack
  • Operating Temperature - Junction:-40°C ~ 150°C

Related Products


VS-20ETF10FP-M3

DIODE GEN PURP 1KV 20A TO220FP

VS-20ETF10FP-M3 Datasheet
  • 1: $2.14178
  • 1000: $2.14178

VS-45APS16L-M3

RECTIFIER DIODE 45A 1600V TO-247

  • 1: $1.98120

VS-45EPS12L-M3

RECTIFIER DIODE 45A 1200V TO-247

  • 1: $1.98120

VS-45APS12L-M3

RECTIFIER DIODE 45A 1200V TO-247

  • 1: $1.98120

VS-45EPS08L-M3

NEW INPUT DIODES - TO-247

  • 1: $1.98120

VS-45APS08L-M3

NEW INPUT DIODES - TO-247

  • 1: $1.98120

JAN1N3595-1

DIODE GEN PURP 125V 150MA DO35

JAN1N3595-1 Datasheet
  • 1: $1.91100
  • 341: $1.91100

JAN1N3595A-1

DIODE GEN PURP 125V 150MA DO35

JAN1N3595A-1 Datasheet
  • 1: $1.91100
  • 341: $1.91100

STPSC12065D

DIODE SCHOTTKY 650V 12A TO220AC

STPSC12065D Datasheet
  • 1: $1.91275
  • 1000: $1.91275

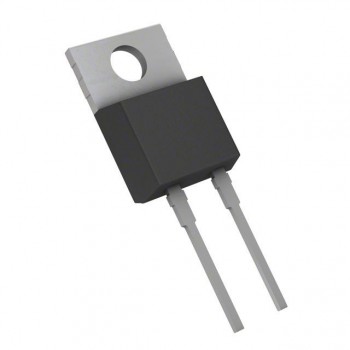

FFSP0465A
