JANTXV1N5809

Microchip Technology
In Stock: 198

Can ship immediately

Pricing:
  • 1$12.8201
  • 100$12.8201

Quote It

Technical Details

  • Series:Military, MIL-PRF-19500/477
  • Package:Bulk
  • Part Status:Active
  • Diode Type:Standard
  • Voltage - DC Reverse (Vr) (Max):100 V
  • Current - Average Rectified (Io):3A
  • Voltage - Forward (Vf) (Max) @ If:875 mV @ 4 A
  • Speed:Fast Recovery =< 500ns, > 200mA (Io)



  • Reverse Recovery Time (trr):30 ns
  • Current - Reverse Leakage @ Vr:5 µA @ 100 V
  • Capacitance @ Vr, F:65pF @ 10V, 1MHz
  • Mounting Type:Through Hole
  • Package / Case:B, Axial
  • Supplier Device Package:-
  • Operating Temperature - Junction:-65°C ~ 175°C

Related Products


JANTXV1N5811

DIODE GEN PURP 150V 3A AXIAL

JANTXV1N5811 Datasheet
  • 1: $12.82010
  • 103: $12.82010

1N5314-1

CURRENT REGULATOR DIODE

1N5314-1 Datasheet
  • 1: $12.82010
  • 100: $12.82010

GKR71/04

DIODE GEN PURP 400V 95A DO5

GKR71/04 Datasheet
  • 1: $13.31300
  • 200: $13.31300

GKR71/08

DIODE GEN PURP 800V 95A DO5

GKR71/08 Datasheet
  • 1: $13.31300
  • 200: $13.31300

GKR71/14

DIODE GEN PURP 1.4KV 95A DO5

GKR71/14 Datasheet
  • 1: $13.31300
  • 200: $13.31300

S85Y

DIODE GEN PURP 1.6KV 85A DO5

S85Y Datasheet
  • 1: $13.31300
  • 200: $13.31300

JTX1N5807

D MET 6A SFST 50V HR 6FFX

  • 1: $13.35016

JTX1N5809

D MET 6A SFST 100V HR

  • 1: $13.35016

JTX1N5811

D MET 6A SFST 150V HR

  • 1: $13.35016

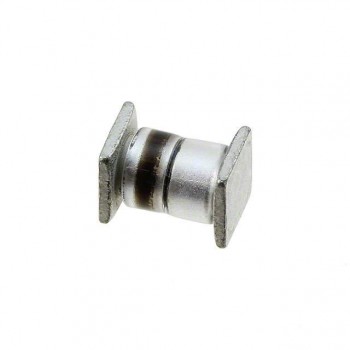

1N6628US
