MBR3560

Technical Details

• Series:-
• Package:Bulk
• Part Status:Active
• Diode Type:Schottky
• Voltage - DC Reverse (Vr) (Max):60 V
• Current - Average Rectified (Io):35A
• Voltage - Forward (Vf) (Max) @ If:750 mV @ 35 A
• Speed:Fast Recovery =< 500ns, > 200mA (Io)

• Reverse Recovery Time (trr):-
• Current - Reverse Leakage @ Vr:1.5 mA @ 20 V
• Capacitance @ Vr, F:-
• Mounting Type:Chassis, Stud Mount

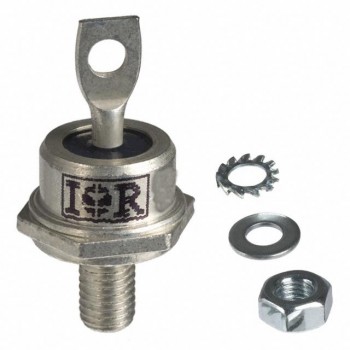

• Package / Case:DO-203AA, DO-4, Stud
• Supplier Device Package:DO-4
• Operating Temperature - Junction:-55°C ~ 150°C
