120NQ040-1

Technical Details

• Series:-
• Package:Bulk
• Part Status:Active
• Diode Type:Schottky
• Voltage - DC Reverse (Vr) (Max):40 V
• Current - Average Rectified (Io):120A
• Voltage - Forward (Vf) (Max) @ If:610 mV @ 120 A
• Speed:Fast Recovery =< 500ns, > 200mA (Io)

• Reverse Recovery Time (trr):-
• Current - Reverse Leakage @ Vr:10 mA @ 40 V
• Capacitance @ Vr, F:5200pF @ 5V, 1MHz
• Mounting Type:Chassis Mount

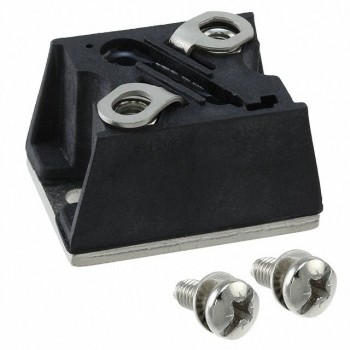

• Package / Case:HALF-PAK
• Supplier Device Package:PRM1-1 (Half Pak Module)
• Operating Temperature - Junction:-55°C ~ 150°C
