UFR3120R
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRECTIFIER
- CategoryDiodes - Rectifiers - Single
- Datasheet UFR3120R Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$43.16
- 100$43.16
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Diode Type:Standard, Reverse Polarity
- Voltage - DC Reverse (Vr) (Max):200 V
- Current - Average Rectified (Io):30A
- Voltage - Forward (Vf) (Max) @ If:1.25 V @ 30 A
- Speed:Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr):50 ns
- Current - Reverse Leakage @ Vr:15 µA @ 200 V
- Capacitance @ Vr, F:115pF @ 10V, 1MHz
- Mounting Type:Stud Mount

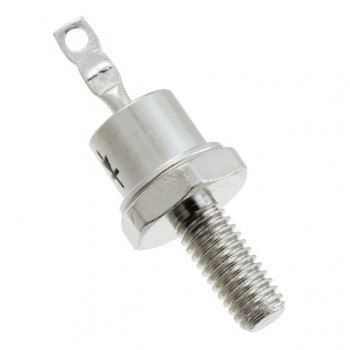

- Package / Case:DO-203AA, DO-4, Stud
- Supplier Device Package:DO-203AA (DO-4)
- Operating Temperature - Junction:-65°C ~ 175°C
