BAT42XV2
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRECTIFIER DIODE, SCHOTTKY, 0.2A,
- CategoryDiodes - Rectifiers - Single
- Datasheet BAT42XV2 Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
- 1$0.03
- 8,000$0.03
- 16,000$0.0255
- 24,000$0.024
- 56,000$0.0225
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Diode Type:Schottky
- Voltage - DC Reverse (Vr) (Max):30 V
- Current - Average Rectified (Io):200mA
- Voltage - Forward (Vf) (Max) @ If:1 V @ 200 mA
- Speed:Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr):5 ns
- Current - Reverse Leakage @ Vr:500 nA @ 25 V
- Capacitance @ Vr, F:7pF @ 1V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:SC-79, SOD-523F
- Supplier Device Package:SOD-523F
- Operating Temperature - Junction:125°C (Max)
Related Products
DIODE GEN PURP 600V 1A DO41
- 1: $0.21000
DIODE GEN PURP 400V 1A DO41
- 1: $0.21000
DIODE GEN PURP 1000V 1A DO41
- 1: $0.21000
DIODE GEN PURP 600V 1A DO41
- 1: $0.21000
DIODE SCHOTTKY 200V 1A SOD123FL
- 1: $0.28000
DIODE SCHOTTKY 150V 1A SOD123FL
- 1: $0.28000
DIODE GEN PURP 1000V 1A SOD123FL
- 1: $0.28000
DIODE GEN PURP 200V 1A SMAF
- 1: $0.28000
DIODE GEN PURP 600V 1A SMAF
- 1: $0.28000

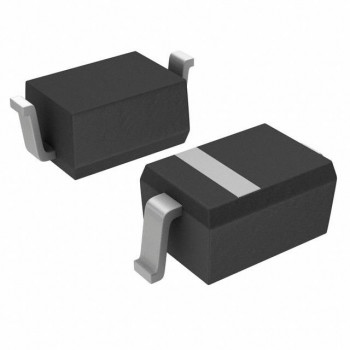

DIODE SCHOTTKY 40V 1A SOD323
