- Lifecycle status Active
- RoHS RoHS Compliant

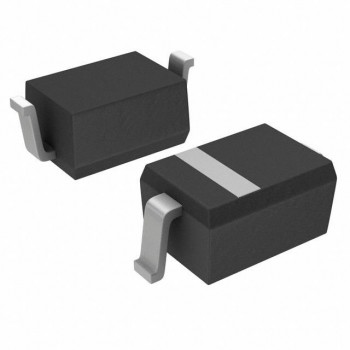

- DescriptionDIODE SCHOTTKY 20V 1A SOD323
- CategoryDiodes - Rectifiers - Single
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$0.28
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Diode Type:Schottky
- Voltage - DC Reverse (Vr) (Max):20 V
- Current - Average Rectified (Io):1A
- Voltage - Forward (Vf) (Max) @ If:450 mV @ 1 A
- Speed:Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr):-
- Current - Reverse Leakage @ Vr:200 µA @ 20 V
- Capacitance @ Vr, F:120pF @ 4V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:SC-76, SOD-323
- Supplier Device Package:SOD-323
- Operating Temperature - Junction:-65°C ~ 125°C
