In Stock: 189

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:eSMP®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Diode Type:Schottky
  • Voltage - DC Reverse (Vr) (Max):40 V
  • Current - Average Rectified (Io):10A
  • Voltage - Forward (Vf) (Max) @ If:560 mV @ 10 A
  • Speed:Fast Recovery =< 500ns, > 200mA (Io)



  • Reverse Recovery Time (trr):-
  • Current - Reverse Leakage @ Vr:800 µA @ 40 V
  • Capacitance @ Vr, F:750pF @ 4V, 1MHz
  • Mounting Type:Surface Mount
  • Package / Case:TO-277, 3-PowerDFN
  • Supplier Device Package:TO-277A (SMPC)
  • Operating Temperature - Junction:-55°C ~ 150°C

Related Products


SS3P4L-E3/86A

DIODE SCHOTTKY 40V 3A TO277A

SS3P4L-E3/86A Datasheet

Call for price


SS3P6L-E3/86A

DIODE SCHOTTKY 60V 3A TO277A

Call for price


SS5P10-E3/86A

DIODE SCHOTTKY 100V 5A TO277A

Call for price


SS5P3-E3/86A

DIODE SCHOTTKY 30V 5A TO277A

SS5P3-E3/86A Datasheet

Call for price


SS5P6-E3/86A

DIODE SCHOTTKY 60V 5A TO277A

SS5P6-E3/86A Datasheet

Call for price


SS8P2L-E3/86A

DIODE SCHOTTKY 20V 8A TO277A

SS8P2L-E3/86A Datasheet

Call for price


SS8P3L-E3/86A

DIODE SCHOTTKY 30V 8A TO277A

SS8P3L-E3/86A Datasheet

Call for price


SS8PH10-E3/86A

DIODE SCHOTTKY 100V 8A TO277A

SS8PH10-E3/86A Datasheet

Call for price


V10P10-E3/86A

DIODE SCHOTTKY 100V 10A TO277A

V10P10-E3/86A Datasheet

Call for price

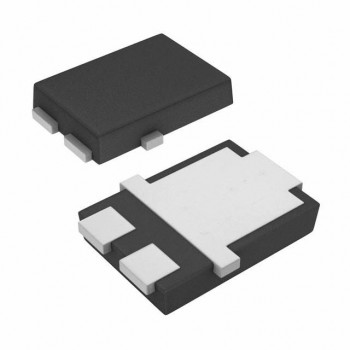

V12P10-E3/86A
