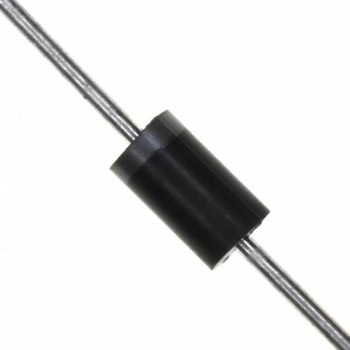

1N5614GPHE3/54
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE GEN PURP 200V 1A DO204AC
- CategoryDiodes - Rectifiers - Single
- Datasheet 1N5614GPHE3/54 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SUPERECTIFIER®
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Diode Type:Standard
- Voltage - DC Reverse (Vr) (Max):200 V
- Current - Average Rectified (Io):1A
- Voltage - Forward (Vf) (Max) @ If:1.2 V @ 1 A
- Speed:Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr):2 µs
- Current - Reverse Leakage @ Vr:500 nA @ 200 V
- Capacitance @ Vr, F:45pF @ 12V, 1MHz
- Mounting Type:Through Hole
- Package / Case:DO-204AC, DO-15, Axial
- Supplier Device Package:DO-204AC (DO-15)
- Operating Temperature - Junction:-65°C ~ 175°C
