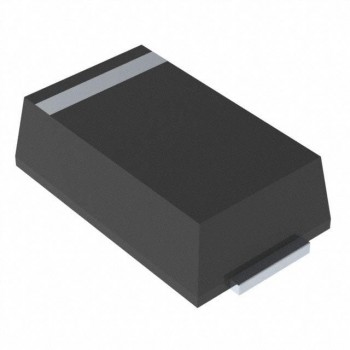

ESH1PB-E3/85A
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE GEN PURP 100V 1A DO220AA
- CategoryDiodes - Rectifiers - Single
- Datasheet ESH1PB-E3/85A Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:eSMP®
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Diode Type:Standard
- Voltage - DC Reverse (Vr) (Max):100 V
- Current - Average Rectified (Io):1A
- Voltage - Forward (Vf) (Max) @ If:900 mV @ 1 A
- Speed:Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr):25 ns
- Current - Reverse Leakage @ Vr:1 µA @ 100 V
- Capacitance @ Vr, F:25pF @ 4V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:DO-220AA
- Supplier Device Package:DO-220AA (SMP)
- Operating Temperature - Junction:-55°C ~ 175°C
