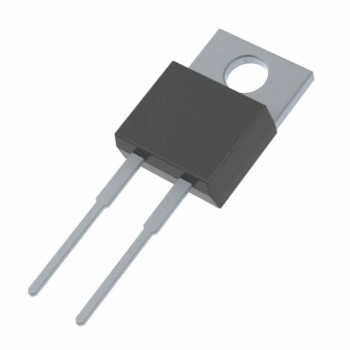

MGR1202-BP

Technical Details

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Diode Type:Standard
• Voltage - DC Reverse (Vr) (Max):100 V
• Current - Average Rectified (Io):12A
• Voltage - Forward (Vf) (Max) @ If:1.1 V @ 12 A
• Speed:Standard Recovery >500ns, > 200mA (Io)

• Reverse Recovery Time (trr):-
• Current - Reverse Leakage @ Vr:5 µA @ 100 V
• Capacitance @ Vr, F:100pF @ 4V, 1MHz
• Mounting Type:Through Hole
• Package / Case:TO-220-2
• Supplier Device Package:TO-220AC
• Operating Temperature - Junction:-55°C ~ 150°C
