SZBZX84C56ET1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE ZENER 56V 225MW SOT23-3
- CategoryDiodes - Zener - Single
- Datasheet SZBZX84C56ET1G Datasheet
-
ECAD Model
- Share
In Stock: 33,118
Can ship immediately
Pricing:
- 1$0.03011
- 12,000$0.03011
Quote It
Technical Details
- Series:Automotive, AEC-Q101
- Package:Tape & Reel (TR)
- Part Status:Active
- Voltage - Zener (Nom) (Vz):56 V
- Tolerance:±7%
- Power - Max:225 mW
- Impedance (Max) (Zzt):200 Ohms
- Current - Reverse Leakage @ Vr:50 nA @ 39.2 V
- Voltage - Forward (Vf) (Max) @ If:900 mV @ 10 mA
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23-3 (TO-236)
Related Products
DIODE ZENER 27V 500MW SOD123
- 1: $0.03029
- 12000: $0.02879

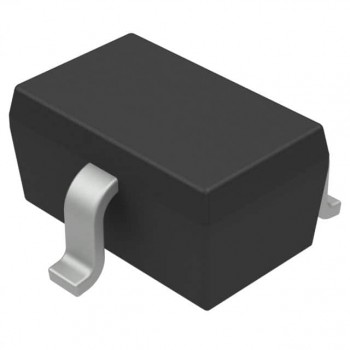

DIODE ZENER 10V 275MW SOT323
