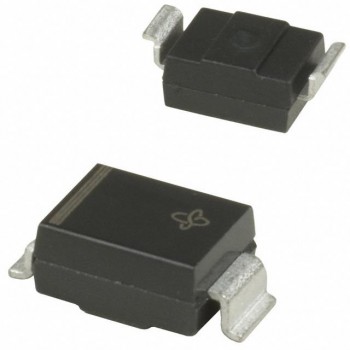

SMZG3797B-E3/5B
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE ZENER 22V 1.5W DO215AA
- CategoryDiodes - Zener - Single
- Datasheet SMZG3797B-E3/5B Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$0.18755
- 3,200$0.18755
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Voltage - Zener (Nom) (Vz):22 V
- Tolerance:±5%
- Power - Max:1.5 W
- Impedance (Max) (Zzt):17.5 Ohms
- Current - Reverse Leakage @ Vr:5 µA @ 16.7 V
- Voltage - Forward (Vf) (Max) @ If:-
- Operating Temperature:-55°C ~ 150°C
- Mounting Type:Surface Mount
- Package / Case:DO-215AA, SMB Gull Wing
- Supplier Device Package:DO-215AA (SMBG)
