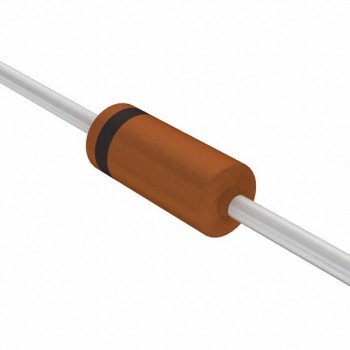

BZX55C56 A0G
TSC (Taiwan Semiconductor)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE ZENER 56V 500MW DO35
- CategoryDiodes - Zener - Single
- Datasheet BZX55C56 A0G Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Box (TB)
- Part Status:Active
- Voltage - Zener (Nom) (Vz):56 V
- Tolerance:±5%
- Power - Max:500 mW
- Impedance (Max) (Zzt):135 Ohms
- Current - Reverse Leakage @ Vr:100 nA @ 42 V
- Voltage - Forward (Vf) (Max) @ If:1 V @ 100 mA
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Through Hole
- Package / Case:DO-204AH, DO-35, Axial
- Supplier Device Package:DO-35
