LDK715M42R
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 4.2V 85MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LDK715M42R Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$0.8
- 3,000$0.25778
- 6,000$0.24
- 15,000$0.23111
- 30,000$0.22222
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):4.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1V @ 85mA
- Current - Output:85mA
- Current - Quiescent (Iq):7 µA
- Current - Supply (Max):8.5 µA
- PSRR:57dB ~ 38dB (100kHz ~ 1kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
Related Products
IC REG LINEAR 1.8V 150MA SC70-5
- 1: $0.80000
- 1000: $0.32000
- 2000: $0.29000
IC REG LINEAR 1.2V 150MA SOT23-5
- 1: $0.80000
- 1000: $0.32000
- 2000: $0.29000
IC REG LINEAR 1.5V 1A SOT223-4
- 1: $0.80000
- 1250: $0.32320

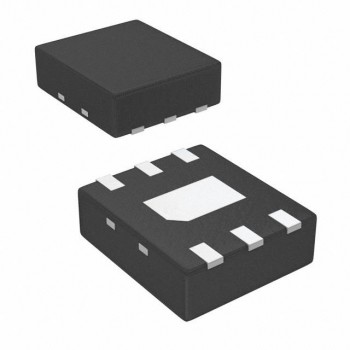

IC REG LINEAR 2.2V 150MA 6WSON
- 1: $0.80000
- 2000: $0.29000
IC REG LINEAR 1.8V 1A SOT223-4
- 1: $0.80000
- 250: $0.47472
- 500: $0.40400

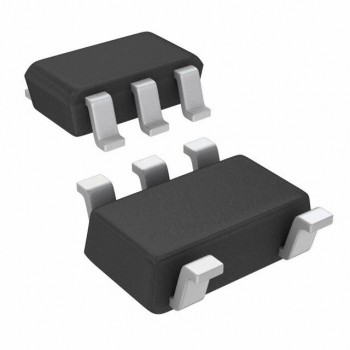

IC REG LINEAR 1.8V 150MA SOT23-5
