AZ1085S-ADJTRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 3A TO263
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AZ1085S-ADJTRG1 Datasheet
-
ECAD Model
- Share
In Stock: 124
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):12V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):10.5V
- Voltage Dropout (Max):1.5V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:72dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount

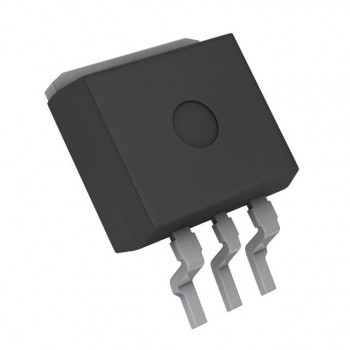

- Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package:TO-263
