PAM3101DAB285
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 2.85V 300MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet PAM3101DAB285 Datasheet
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.85V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.45V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):90 µA
- Current - Supply (Max):90 µA
- PSRR:70dB ~ 65dB (100Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount

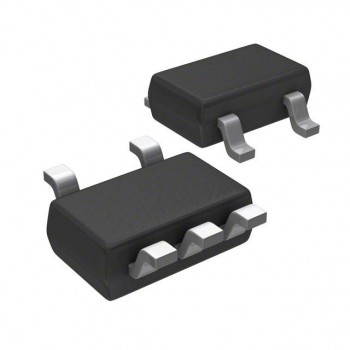

- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
