1644780000
Weidmuller
- Lifecycle status Active
- RoHS RoHS Compliant

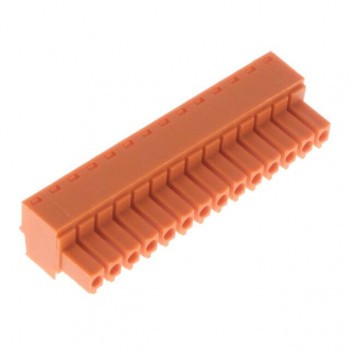

- DescriptionTERM BLOCK PLUG 7/14POS 5.08MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1644780000 Datasheet
-
ECAD Model
- Share
In Stock: 239
Can ship immediately
Pricing:
- 1$10.35
- 10$8.86714
- 25$8.46206
- 50$7.60675
- 100$7.20167
- 250$6.52649
- 500$6.07639
- 1,000$5.73881
Quote It
Technical Details
- Series:Omnimate BL
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:7 (Mate), 14 (Input)
- Positions Per Level:7
- Number of Levels:1 (Mate), 2 (Input)
- Pitch:0.200" (5.08mm)
- Header Orientation:-
- Plug Wire Entry:90° and 270°
- Termination Style:Screw - Clamping Yoke (Tension Sleeve)
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:14A
- Voltage - IEC:400 V
- Current - UL:10 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-26 AWG
- Wire Gauge or Range - mm²:0.2-2.5mm²
- Color:Orange
- Operating Temperature:-50°C ~ 100°C
- Contact Mating Finish:Tin
- Features:Retention Latches (Non-Wire Side)
