282815-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK HDR 9POS 90DEG 5.08MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 282815-9 Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
- 1$2.97
- 10$2.26513
- 25$2.12131
- 50$1.88575
- 100$1.84466
- 250$1.70124
- 500$1.53726
- 1,000$1.36303
- 5,000$1.28105
Quote It
Technical Details
- Series:Buchanan
- Package:Bulk
- Part Status:Active
- Type:Header, Male Pins, Shrouded (2 Side)
- Number of Positions:9
- Positions Per Level:9
- Number of Levels:1
- Pitch:0.200" (5.08mm)
- Header Orientation:90°, Right Angle
- Plug Wire Entry:-
- Termination Style:Solder
- Mounting Type:Through Hole
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:-
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 110°C
- Contact Mating Finish:Tin
- Features:Side Stacking
Related Products
PCB PLUG 4P 5.08MM VERT AKZ1110/
- 1: $3.02000
- 50: $3.02000
TERM BLK PLUG 2POS 180DEG 5.00MM
- 1: $3.06000
TERM BLK PLUG 2POS 180DEG 5.08MM
- 1: $3.06000
TERM BLK PLUG 2POS 90DEG 5.08MM
- 1: $3.06000

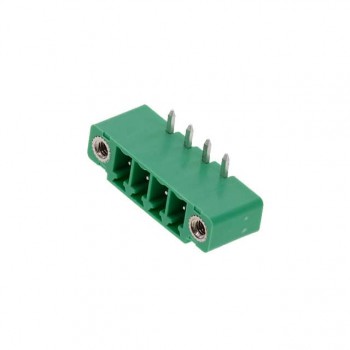

TERM BLK HDR 4POS 180DEG 3.81MM
- 1: $3.11000

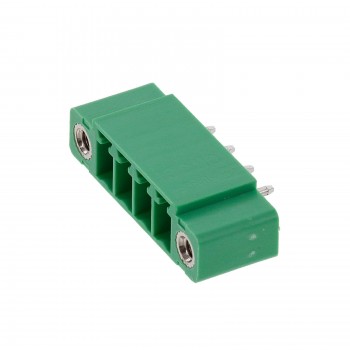

TERM BLK HDR 4POS 90DEG 3.81MM
