1-796638-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK HDR 16POS 5.08MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1-796638-6 Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$6.81
- 10$5.36985
- 25$5.10821
- 50$4.63669
- 100$4.45329
- 250$3.92934
- 500$3.66739
- 1,000$3.40544
Quote It
Technical Details
- Series:Termi-Blok, Buchanan
- Package:Bulk
- Part Status:Active
- Type:Header, Male Pins, Shrouded (4 Side)
- Number of Positions:16
- Positions Per Level:16
- Number of Levels:1
- Pitch:0.200" (5.08mm)
- Header Orientation:90°, Right Angle
- Plug Wire Entry:-
- Termination Style:Solder
- Mounting Type:Through Hole
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:-
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 110°C
- Contact Mating Finish:Tin
- Features:-
Related Products
TERM BLOCK PLUG 7POS STR 3.81MM
- 1: $6.84000
- 50: $4.15300

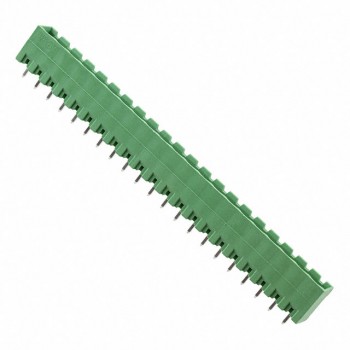

TERM BLOCK HDR 22POS 5.08MM
