1638650000
Weidmuller
- Lifecycle status Active
- RoHS RoHS Compliant

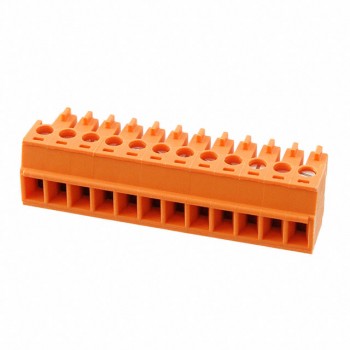

- DescriptionTERM BLOCK PLUG 12POS 3.5MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1638650000 Datasheet
-
ECAD Model
- Share
In Stock: 206
Can ship immediately
Pricing:
- 1$12.43
- 10$10.94007
- 25$10.31857
- 50$9.82116
- 100$9.63471
- 250$8.39151
- 500$8.08073
- 1,000$7.76993
Quote It
Technical Details
- Series:Omnimate BL
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:12
- Positions Per Level:12
- Number of Levels:1
- Pitch:0.138" (3.50mm)
- Header Orientation:-
- Plug Wire Entry:90°
- Termination Style:Screw - Clamping Yoke (Tension Sleeve)
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:12A
- Voltage - IEC:320 V
- Current - UL:8 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:14-28 AWG
- Wire Gauge or Range - mm²:0.2-1.5mm²
- Color:Orange
- Operating Temperature:-50°C ~ 100°C
- Contact Mating Finish:Tin
- Features:-
Related Products

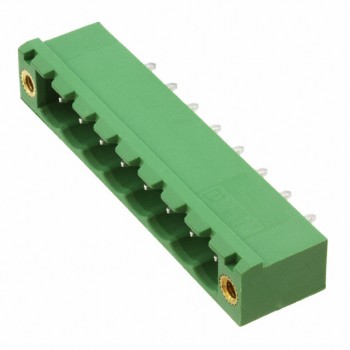

TERM BLOCK HDR 8POS VERT 5.08MM
