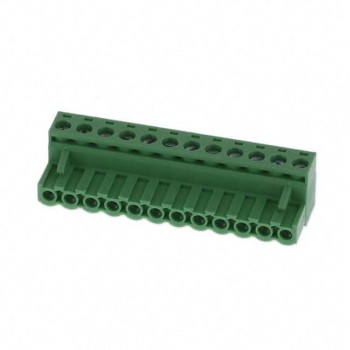

25-E800-12
NTE Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERMINAL BLOCK EUROSTYLE
- CategoryTerminal Blocks - Headers, Plugs and Sockets
-
ECAD Model
- Share
In Stock: 220
Can ship immediately
Pricing:
- 1$4.15
Quote It
Technical Details
- Series:25-E800
- Package:Bag
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:12
- Positions Per Level:12
- Number of Levels:1
- Pitch:0.197" (5.00mm)
- Header Orientation:-
- Plug Wire Entry:180°
- Termination Style:Screw
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-28 AWG
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-
- Contact Mating Finish:-
- Features:Retention Latches (Non-Wire Side)
