HW0470530000G
Anytek (Amphenol Anytek)
- Lifecycle status Active
- RoHS RoHS Compliant

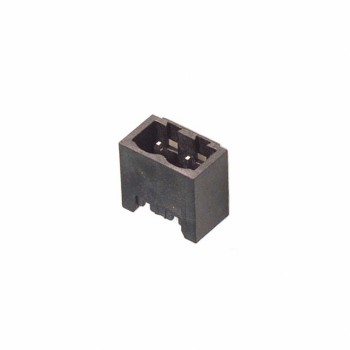

- DescriptionTERM BLOCK PLUG 4POS STR 5MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet HW0470530000G Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$0.73766
- 2,000$0.73766
Quote It
Technical Details
- Series:HW
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:4
- Positions Per Level:4
- Number of Levels:1
- Pitch:0.197" (5.00mm)
- Header Orientation:-
- Plug Wire Entry:180°
- Termination Style:Screwless - Leg Spring, Push-In Spring
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:10 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-26 AWG
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 115°C
- Contact Mating Finish:Tin
- Features:Mating Flange, Retention Latches (Non-Wire Side)
