14295.1
Conta-Clip
- Lifecycle status Active
- RoHS RoHS Compliant

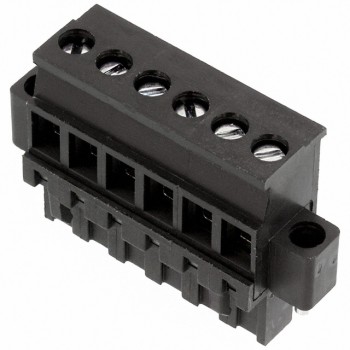

- DescriptionPLUG-IN CONNECTOR
- CategoryTerminal Blocks - Headers, Plugs and Sockets
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$2.2632
Quote It
Technical Details
- Series:PKBZ
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:3
- Positions Per Level:3
- Number of Levels:1
- Pitch:0.300" (7.62mm)
- Header Orientation:-
- Plug Wire Entry:180°
- Termination Style:Screw - Rising Cage Clamp
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:12A
- Voltage - IEC:400 V
- Current - UL:10 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-28 AWG
- Wire Gauge or Range - mm²:0.08-4mm²
- Color:Green
- Operating Temperature:-30°C ~ 105°C
- Contact Mating Finish:-
- Features:Mating Flange, Retention Latches (Non-Wire Side)
