1839908
Phoenix Contact- Lifecycle status Active
- RoHS RoHS Compliant

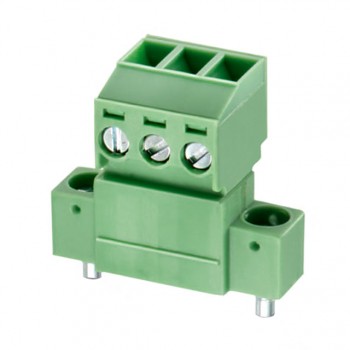

- DescriptionTERM BLOCK PLUG
- CategoryTerminal Blocks - Headers, Plugs and Sockets
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$3
- 50$3
Quote It
Technical Details
- Series:COMBICON MVSTBW
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:3
- Positions Per Level:3
- Number of Levels:1
- Pitch:0.197" (5.00mm)
- Header Orientation:-
- Plug Wire Entry:270°
- Termination Style:Screw - Clamping Yoke (Tension Sleeve)
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:12A
- Voltage - IEC:250 V
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-30 AWG
- Wire Gauge or Range - mm²:0.2-2.5mm²
- Color:Gray
- Operating Temperature:-
- Contact Mating Finish:Tin
- Features:Retention Latches (Non-Wire Side)
