0395305109
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK PLUG 9POS STR 5.08MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 0395305109 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$3.735
- 468$3.735
Quote It
Technical Details
- Series:Eurostyle ESE 39530
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:9
- Positions Per Level:9
- Number of Levels:1
- Pitch:0.200" (5.08mm)
- Header Orientation:-
- Plug Wire Entry:180°
- Termination Style:Screw - Rising Cage Clamp
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-26 AWG
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 115°C
- Contact Mating Finish:Tin
- Features:Positions Stamped, Retention Latches (Non-Wire Side)
Related Products

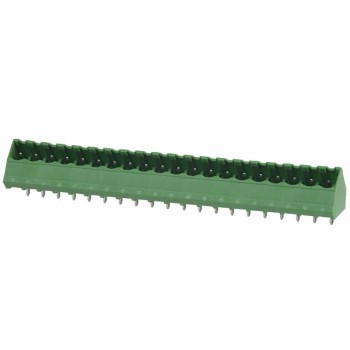

HEADER PCB 22POS 5MM HORZ
