0397070012
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

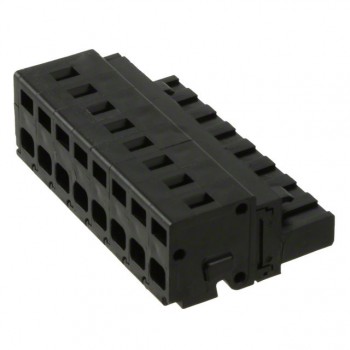

- DescriptionTERM BLOCK PLUG 12POS 7.62MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 0397070012 Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$4.1002
- 252$4.1002
Quote It
Technical Details
- Series:39707
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:12
- Positions Per Level:12
- Number of Levels:1
- Pitch:0.300" (7.62mm)
- Header Orientation:-
- Plug Wire Entry:270°
- Termination Style:Screw
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-30 AWG
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 105°C
- Contact Mating Finish:Tin
- Features:Retention Latches (Non-Wire Side)
