1794250000
Weidmuller- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK HDR 14POS 90DEG 3.5MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1794250000 Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$4.67097
- 72$4.46306
Quote It
Technical Details
- Series:Omnimate S2L
- Package:Bulk
- Part Status:Active
- Type:Header, Male Pins, Shrouded (4 Side)
- Number of Positions:14
- Positions Per Level:7
- Number of Levels:2
- Pitch:0.138" (3.50mm)
- Header Orientation:90°, Right Angle
- Plug Wire Entry:-
- Termination Style:Solder
- Mounting Type:Through Hole
- Current - IEC:10A
- Voltage - IEC:160 V
- Current - UL:10 A
- Voltage - UL:150 V
- Wire Gauge or Range - AWG:-
- Wire Gauge or Range - mm²:-
- Color:Black
- Operating Temperature:-50°C ~ 100°C
- Contact Mating Finish:Tin
- Features:-
Related Products

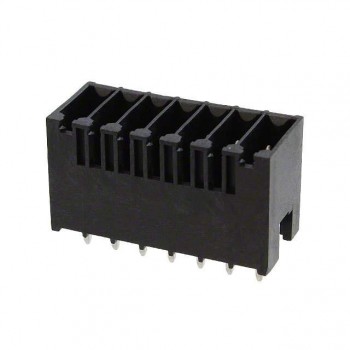

TERM BLOCK HDR 14POS VERT 3.5MM
- 1: $4.67097
- 72: $4.46306

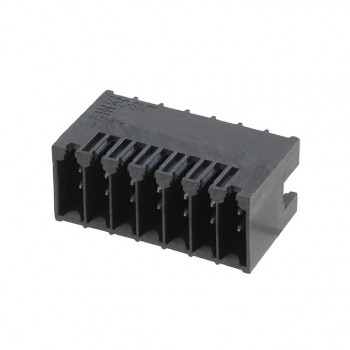

TERM BLOCK HDR 14POS 90DEG 3.5MM
