1776263-9
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTERM BLOCK PLUG 9POS 90DEG 5MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1776263-9 Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$4.959
- 390$4.959
Quote It
Technical Details
- Series:Buchanan
- Package:Bulk
- Part Status:Active
- Type:Plug for Unshrouded Header
- Number of Positions:9
- Positions Per Level:9
- Number of Levels:1
- Pitch:0.197" (5.00mm)
- Header Orientation:-
- Plug Wire Entry:90°
- Termination Style:Screw - Rising Cage Clamp
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:10 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:16-24 AWG
- Wire Gauge or Range - mm²:0.2-1.4mm²
- Color:Blue
- Operating Temperature:-40°C ~ 105°C
- Contact Mating Finish:Tin
- Features:Interlocking (Side)
Related Products
TERM BLOCK HDR 8POS 90DEG 5.08MM
- 1: $4.96000
- 50: $4.95600

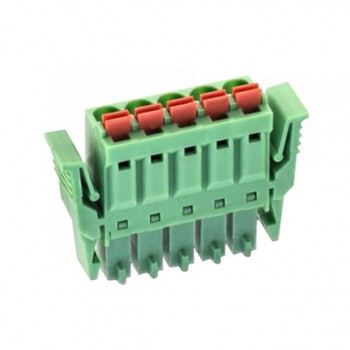

TERM BLOCK PLUG 5POS 180 3.50MM
- 1: $4.96000
- 10: $4.33735
- 50: $3.92696

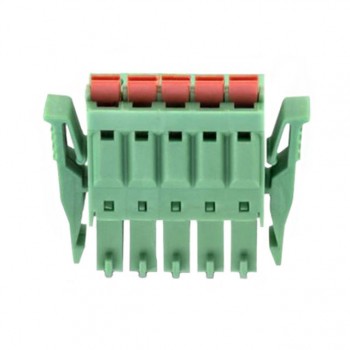

TERM BLOCK PLUG 5POS 180 3.81MM
