B32653A1103K289
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant

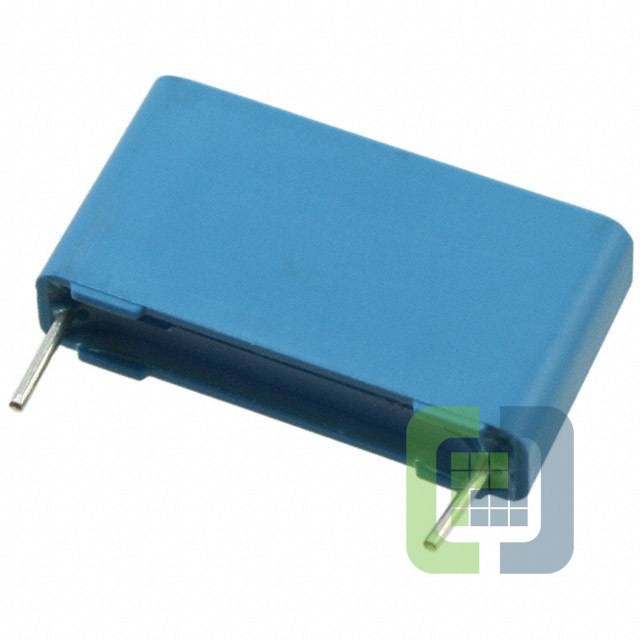

- DescriptionCAP FILM 10000PF 10% 1.6KVDC RAD
- CategoryFilm Capacitors
- Datasheet B32653A1103K289 Datasheet
-
ECAD Model
- Share
In Stock: 124
Can ship immediately
Pricing:
- 1$0.50846
- 2,720$0.50846
Quote It
Technical Details
- Series:B32653
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:10000 pF
- Tolerance:±10%
- Voltage Rating - AC:500V
- Voltage Rating - DC:1600V (1.6kV)
- Dielectric Material:Polypropylene (PP), Metallized
- ESR (Equivalent Series Resistance):-
- Operating Temperature:-55°C ~ 100°C
- Mounting Type:Through Hole
- Package / Case:Radial
- Size / Dimension:1.043" L x 0.236" W (26.50mm x 6.00mm)
- Height - Seated (Max):0.591" (15.00mm)
- Termination:PC Pins
- Lead Spacing:0.886" (22.50mm)
- Applications:DC Link, DC Filtering; High Pulse, DV/DT
- Ratings:-
- Features:-
