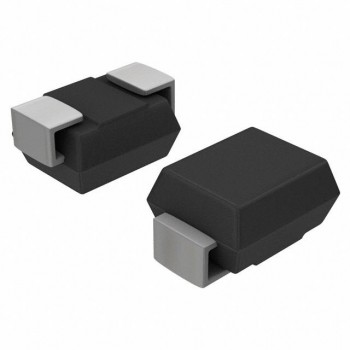

SZP6SMB56CAT3G
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 47.8V 77V SMB
- CategoryTVS - Diodes
- Datasheet SZP6SMB56CAT3G Datasheet
-
ECAD Model
- Share
In Stock: 2,630
Can ship immediately
Pricing:
- 1$0.65
- 2,500$0.65
- 5,000$0.6087
- 12,500$0.60182
Quote It
Technical Details
- Series:Automotive, AEC-Q101
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:-
- Bidirectional Channels:1
- Voltage - Reverse Standoff (Typ):47.8V
- Voltage - Breakdown (Min):53.2V
- Voltage - Clamping (Max) @ Ipp:77V
- Current - Peak Pulse (10/1000µs):7.8A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:185pF @ 1MHz
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AA, SMB
- Supplier Device Package:SMB
