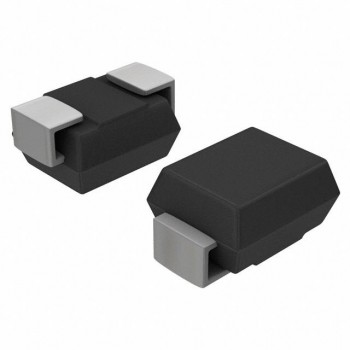

SZ1SMB45CAT3G
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 45V 72.2V SMB
- CategoryTVS - Diodes
- Datasheet SZ1SMB45CAT3G Datasheet
-
ECAD Model
- Share
In Stock: 903
Can ship immediately
Pricing:
- 1$0.64
- 2,500$0.32956
- 5,000$0.30862
- 12,500$0.30512
Quote It
Technical Details
- Series:Automotive, AEC-Q101
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:-
- Bidirectional Channels:1
- Voltage - Reverse Standoff (Typ):45V
- Voltage - Breakdown (Min):50V
- Voltage - Clamping (Max) @ Ipp:72.2V
- Current - Peak Pulse (10/1000µs):8.3A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:200pF @ 1MHz
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AA, SMB
- Supplier Device Package:SMB
