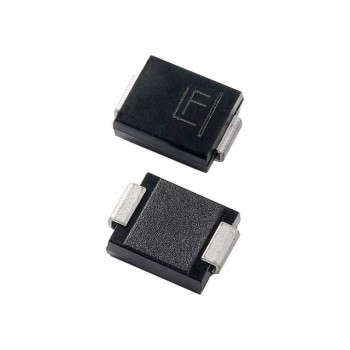

TPSMD12A
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 12V 19.9V DO214AB
- CategoryTVS - Diodes
- Datasheet TPSMD12A Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$1.05
- 3,000$0.50803
- 6,000$0.4858
Quote It
Technical Details
- Series:Automotive, AEC-Q101, TPSMD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):12V
- Voltage - Breakdown (Min):13.3V
- Voltage - Clamping (Max) @ Ipp:19.9V
- Current - Peak Pulse (10/1000µs):150.8A
- Power - Peak Pulse:3000W (3kW)
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AB, SMC
- Supplier Device Package:DO-214AB (SMCJ)
