• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionESD PROTECTION DIODE DFN1006-2A
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 941

Can ship immediately

Pricing:
  • 1$0.36

Quote It

Technical Details

  • Series:Automotive, AEC-Q101
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):7V, 14V
  • Voltage - Breakdown (Min):7.3V, 14.5V
  • Voltage - Clamping (Max) @ Ipp:15V, 30V



  • Current - Peak Pulse (10/1000µs):3.6A (8/20µs), 2A (8/20µs)
  • Power - Peak Pulse:50W, 61W
  • Power Line Protection:No
  • Applications:Automotive
  • Capacitance @ Frequency:8pF @ 1MHz
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:0402 (1006 Metric)
  • Supplier Device Package:DFN1006-2A

Related Products


PTVS6V0P1UP,115

TVS DIODE 6V 10.3V CFP5

PTVS6V0P1UP,115 Datasheet
  • 1: $0.35000
  • 3000: $0.12994
  • 6000: $0.12206

PESD2IVN27-TR

TVS DIODE 27V 45V TO236AB

PESD2IVN27-TR Datasheet
  • 1: $0.35000
  • 3000: $0.09870
  • 6000: $0.08988

PTVS11VP1UP,115

TVS DIODE 11V 18.2V CFP5

PTVS11VP1UP,115 Datasheet
  • 1: $0.35000
  • 3000: $0.12994
  • 6000: $0.12206

PESD5V0L1USF,315

TVS DIODE 5V 10.5V DSN0603-2

  • 1: $0.35000

PTVS10VP1UP,115

TVS DIODE 10V 17V CFP5

PTVS10VP1UP,115 Datasheet
  • 1: $0.35000
  • 3000: $0.12994
  • 6000: $0.12206

P6SMB47CA-E3/52

TVS DIODE 40.2V 64.8V DO214AA

P6SMB47CA-E3/52 Datasheet
  • 1: $0.35000
  • 3000: $0.15975

BZA462A,115

TVS DIODE 6.2V 9V 6TSOP

BZA462A,115 Datasheet
  • 1: $0.35000
  • 3000: $0.08883
  • 6000: $0.08390

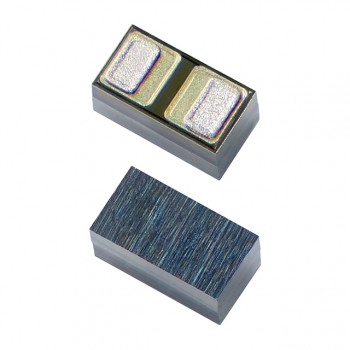

SP12-01WTG-C-HV
