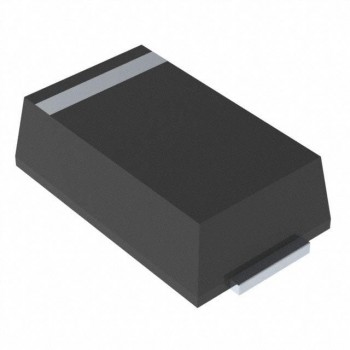

TPSMP16AHM3_A/H
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 13.6V 22.5V DO220AA
- CategoryTVS - Diodes
- Datasheet TPSMP16AHM3_A/H Datasheet
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$0.47
- 3,000$0.1874
- 6,000$0.17681
- 15,000$0.16622
- 30,000$0.16446
Quote It
Technical Details
- Series:Automotive, AEC-Q101, PAR®, eSMP®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):13.6V
- Voltage - Breakdown (Min):15.2V
- Voltage - Clamping (Max) @ Ipp:22.5V
- Current - Peak Pulse (10/1000µs):17.8A
- Power - Peak Pulse:400W
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-65°C ~ 185°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-220AA
- Supplier Device Package:DO-220AA (SMP)
