SZ1SMA45CAT3G

Wickmann / Littelfuse
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionZENER TVS 400W 45V BI DO-214AC
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 113

Can ship immediately

Pricing:
  • 1$0.32003

Quote It

Technical Details

  • Series:Automotive, AEC-Q101, SZ1SMA
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):45V
  • Voltage - Breakdown (Min):50V
  • Voltage - Clamping (Max) @ Ipp:72.2V



  • Current - Peak Pulse (10/1000µs):5.5A
  • Power - Peak Pulse:400W
  • Power Line Protection:No
  • Applications:Automotive
  • Capacitance @ Frequency:-
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AC, SMA
  • Supplier Device Package:SMA

Related Products


SZ1SMA10CAT3G

ZEN TVS 400W 10V BI DO-214AC TR

  • 1: $0.32003

SMDJE100A

TVS DIODE 100V 162VC 3000W SMD

  • 1: $0.87000

SMDJE170A

TVS DIODE 170V 275VC 3000W SMD

  • 1: $0.87000

SMDJE75A

TVS DIODE 75V 121VC 3000W SMD

  • 1: $0.87000

TPSMC15CA

TVS DIODE 12.8V 21.2V DO214AB

TPSMC15CA Datasheet
  • 1: $0.30780
  • 3000: $0.30780

TPSMC24CA

TVS DIODE 20.5V 33.2V DO214AB

TPSMC24CA Datasheet
  • 1: $0.85000
  • 3000: $0.37457
  • 6000: $0.35077

TPSMC51CA

TVS DIODE 43.6V 70.1V DO214AB

TPSMC51CA Datasheet
  • 1: $0.85000
  • 3000: $0.85000
  • 6000: $0.79599

TPSMC56A

TVS DIODE 47.8V 77V DO214AB

TPSMC56A Datasheet
  • 1: $0.30780
  • 3000: $0.30780

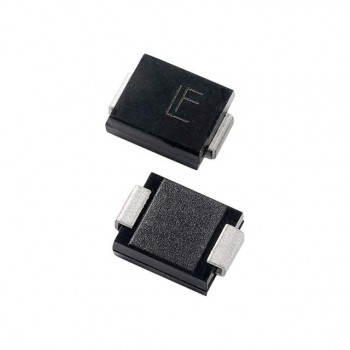

TPSMC75A

TVS DIODE 64.1V 103V DO214AB

TPSMC75A Datasheet
  • 1: $0.85000
  • 3000: $0.37457
  • 6000: $0.35077

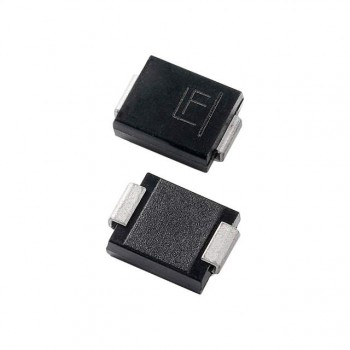

TPSMC36CA-VR
